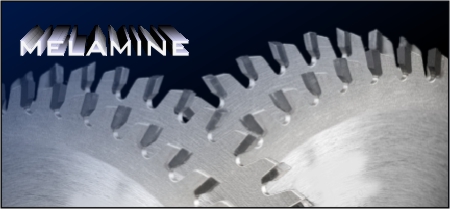

MELAMINE / LAMINATE BLADES
Products:
A steeper angle (30°) on the top bevel gives this saw blade an enhanced razor sharp shearing action to slice through single or double sided melamine without chipping. These blades are good for melamine, laminates, coreboard and other plywoods that tend to blow-out on the exit cut.
All melamine premium blades come standard with "Micro-sheen C-4 Sub-Micron Carbide"
8 - 16 Inch Diameter
8" Diam. ( HATB )
64 Teeth, -5* Hook
( .118 Kerf x .079 Plate)
5/8" Bore
72.00
180mm Diam. ( **HF )
36 Teeth, -5* Hook
( 2.9mm Kerf x .2.0mm Plate)
30mm Bore
86.00
220mm Diam. ( HATB )
64 Teeth, -5* Hook
( 3.0mm Kerf x .2.2mm Plate)
30mm/2/7/42 Bore
81.00
220mm Diam. ( **HF )
42 Teeth, 10* Hook
( 3.2mm Kerf x .2.2mm Plate)
30mm/2/7/42 Bore
96.00
250mm Diam. ( HATB )
80 Teeth, -5* Hook
( 3.2mm Kerf x .2.2mm Plate)
30mm/2/7/42 Bore
74.00
10" Diam. ( **HF )
48 Teeth, 10*Hook
( .126 Kerf x .087 Plate)
5/8" Bore
74.00
10" Diam. ( HATB )
80 Teeth, -5* Hook
( .126 Kerf x .087 Plate)
5/8" Bore
74.00
10" Diam. ( TCG)
80 Teeth, -5* Hook
( .126 Kerf x .087 Plate)
5/8" Bore
83.00
10" Diam. ( HATB )
80 Teeth, 0*Hook
( .102 (max 1" cut) x .071 Plate)
5/8" Bore
83.00
300mm Diam. ( **HF )
60 Teeth, 10* Hook
( 3.2mm Kerf x .2.2mm Plate)
30mm/2 + 2PH
118.00
300mm Diam. ( HATB)
80 Teeth, -5* Hook
( 3.2mm Kerf x .2.2mm Plate)
30mm/2 + 2PH
114.00
300mm Diam. ( HATB )
100 Teeth, -5*Hook
( 3.2mm Kerf x .2.2mm Plate)
30mm/2 + 2PH
125.00
12" Diam. ( HATB )
80 Teeth, -5* Hook
( .134 Kerf x .094 Plate)
1.0" Bore
113.00
12" Diam. ( HATB)
100 Teeth, -5* Hook
( .134 Kerf x .094 Plate)
1.0" Bore
127.00
14" Diam. ( HATB )
100 Teeth, -5*Hook
( .142 Kerf x .110 Plate)
1.0" Bore
147.00
16" Diam. ( HATB )
100 Teeth, -5* Hook
( .158 Kerf x .118 Plate)
1.0" Bore
153.00
