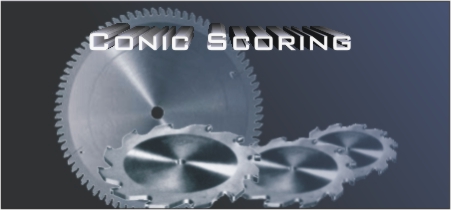

CONIC SCORING SAW BLADES
Products:
Please match your conic blade to the appropriate "main" panel blade. The conic (wedge) tooth design allows adjustment to match the width of the main panel saw blade's kerf simply by adjusting the height of the scoring blade. Conic blades will eliminate chipping on the exit cut, while processing "books" of materials.
Conic Scoring Blades come with a standard 10* hook.
"Super Micro-Sheen C-11 Sub-Micron Carbide" are standard on all Conic Scoring Blades
120mm - 180mm Diameter
120mm Diam. ( RA )
24 Teeth x 20mm Bore
(3.2 - 4.2 ) Kerf x 2.2 Plate
70.00
Standard bore, fits most machines
120mm Diam. ( RA )
24 Teeth x 20mm Bore
(4.4 - 5.4 ) Kerf x 3.0 Plate
73.00
Standard bore, fits most machines
125mm Diam. ( RA )
24 Teeth x 20mm Bore
(4.4 - 5.4 ) Kerf x 3.0 Plate
73.75
Fits Shelling
125mm Diam. ( RA )
24 Teeth x 45mm Bore
(4.4 - 5.4 ) Kerf x 3.0 Plate
88.00
Fits Giben, Homag
150mm Diam. ( RA )
24 Teeth x 30mm Bore
(4.4 - 5.2 ) Kerf x 3.0 Plate
97.00
Fits Mayer
150mm Diam. ( RA )
24 Teeth x 1.25" Bore
(4.4 - 5.4 ) Kerf x 3.0 Plate
97.00
Fits SCM
150mm Diam. ( RA )
24 Teeth x 45mm Bore
(4.4 - 5.4 ) Kerf x 3.0 Plate
97.00
Fits Homag
160mm Diam. ( RA )
36 Teeth (55mm + 3PH Bore)
(4.4 - 5.4 ) Kerf x 3.0 Plate
116.00
Fits Gabbiani
175mm Diam. ( RA )
28 Teeth x 45mm Bore
(4.4 - 5.4 ) Kerf x 3.0 Plate
116.00
Fits Holzma
180mm Diam. ( RA )
30 Teeth x 45mm Bore
(4.4 - 5.4 ) Kerf x 3.0 Plate
123.50
Fits Holzma, Homag
180mm Diam. ( RA )
36 Teeth x 45mm Bore
(4.8 - 5.8 ) Kerf x 3.0 Plate
123.50
Fits Holzma
180mm Diam. ( RA )
36 Teeth x 55mm Bore
(5.0 - 6.0 ) Kerf x 3.0 Plate
123.50
Giben
200mm Diameter plus
200mm Diam. ( RA )
34T x (65 2/9/110, 2/9/100 Bore)
(4.4 - 5.2 ) Kerf x 3.0 Plate
114.00
Fits Selco
200mm Diam. ( RA )
34 Teeth x 20mm Bore
(4.4 - 5.4 ) Kerf x 3.0 Plate
114.00
Fits Shelling
200mm Diam. ( RA )
34 Teeth x 45mm Bore
(4.8 - 5.8 ) Kerf x 3.0 Plate
114.00
Fits Holzma
200mm Diam. ( RA )
34 Teeth x 20mm Bore
(5.0 - 6.0 ) Kerf x 3.0 Plate
120.00
Fits Shelling
200mm Diam. ( RA )
34 Teeth x 45mm Bore
(5.0 - 6.0 ) Kerf x 3.0 Plate
121.00
Fits Holzma
200mm Diam. ( RA )
34 Teeth x 45mm Bore
(5.8 - 6.8 ) Kerf x 3.0 Plate
127.00
Fits Holzma
200mm Diam. ( RA )
34 Teeth x 45mm Bore
(5.8 - 6.8 ) Kerf x 3.0 Plate
127.00
Fits Holzma
200mm Diam. ( RA )
36 Teeth x 65mm Bore
(4.8 - 5.8 ) Kerf x 3.0 Plate
127.00
Fits Selco
200mm Diam. ( RA )
36 Teeth x 80mm Bore
(4.4 - 5.4 ) Kerf x 3.0 Plate
127.00
Fits SCM, Gabbiani
